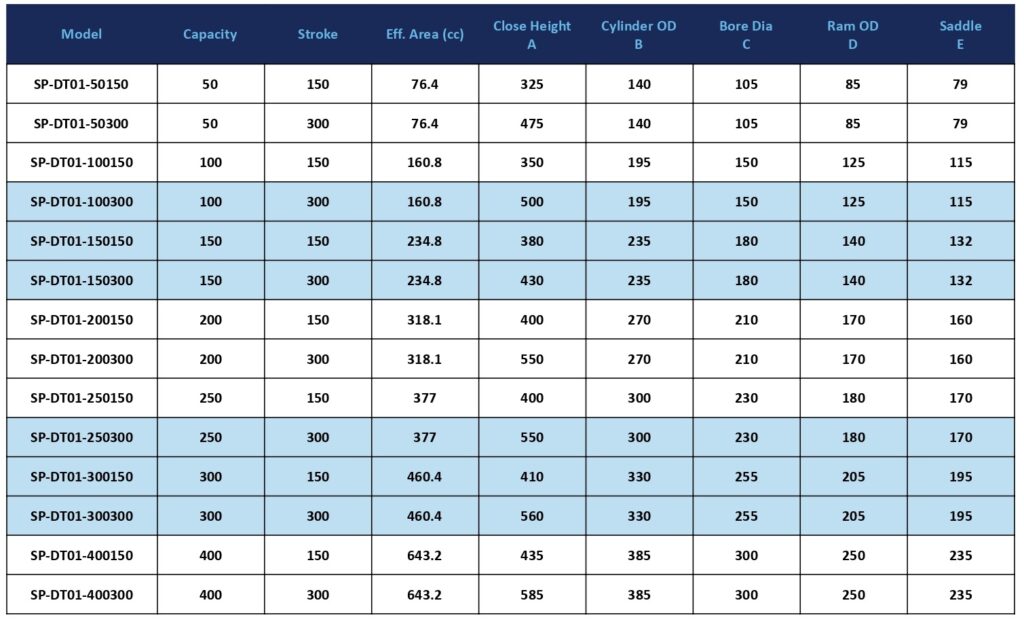

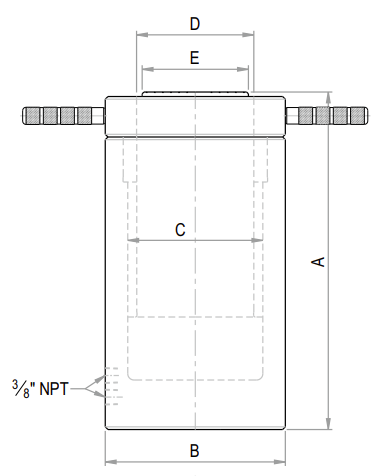

SP - DT01
Special Application Jacks - Threaded Ram with Safety Lock Nut,
Double Acting (Type - Oil Return)
Capacity 50 – 400 ton | Stroke 150 – 300 mm | Max. Working Pressure 700 bar
Features / Application
- Threaded ram with safety lock nut for mechanical load holding
- Sustained load holding with lock nut in vertical & horizontal direction
- Double acting/oil return design for speedy return
- Heat teated alloy steel body
- Safety Relief Valve in return port prevents damage in case of accidental over pressurization due to blockage in return line
- Suited for heavy industries & construction
DT01 Series SP Shree Panchattatva Hydraulics D Double Acting Oil Return T01 Threaded Ram 50 Capacity (ton) 150 Stroke (mm)
• Higher capacity and customized solutions on request.
• Specifications are subject to change due to continual improvement.
• Capacity and Stroke specified are maximum safe limits. Use at 80% of rating as safe practice.

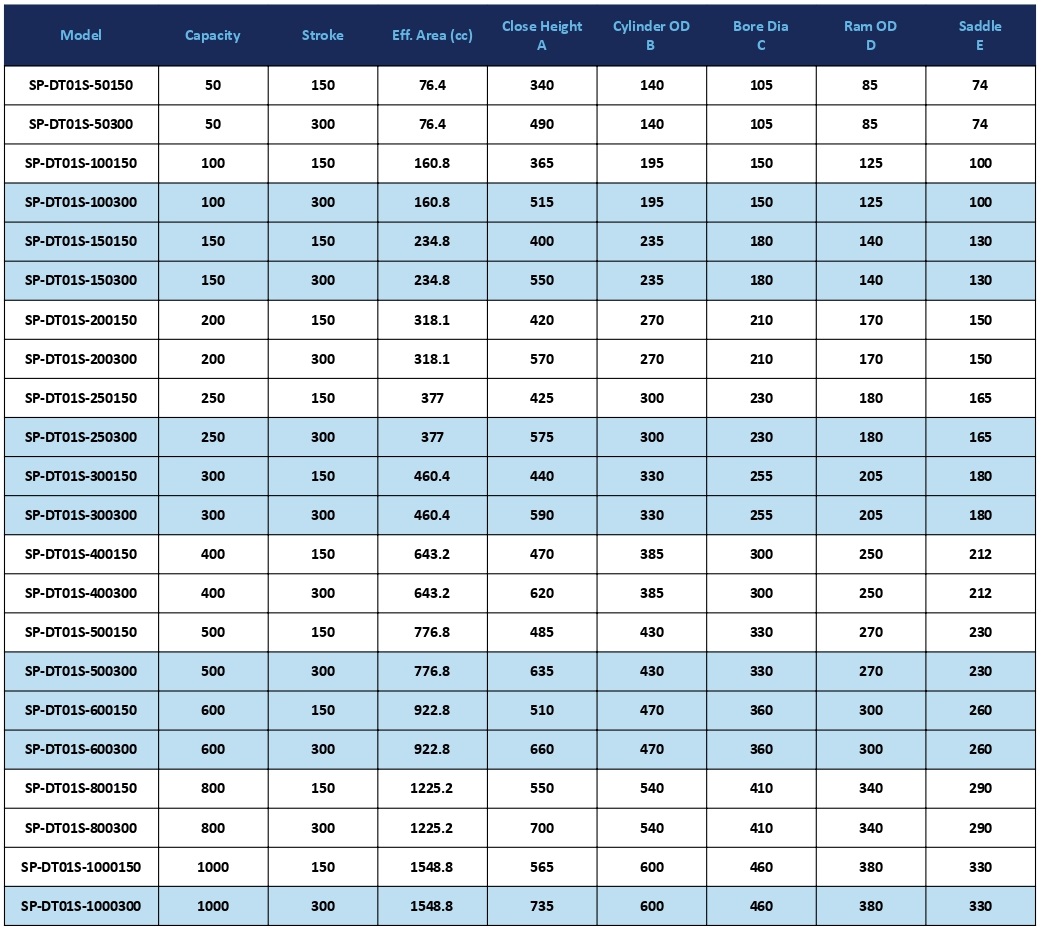

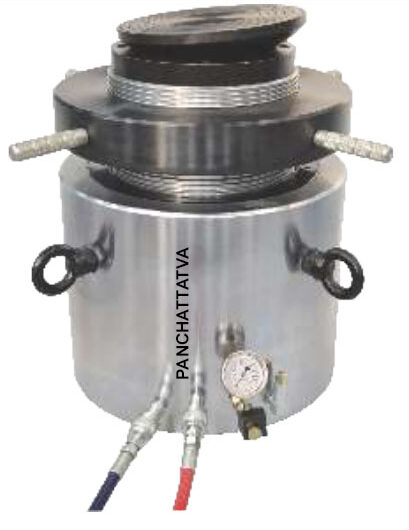

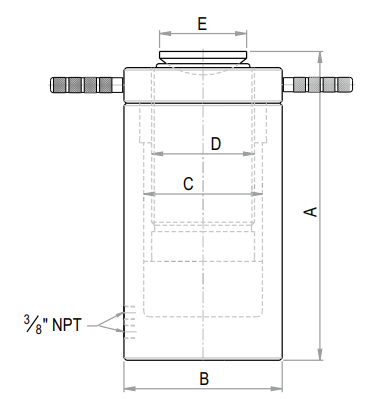

SP - DT01S
Special Application Jacks - Threaded Ramwith Safety Lock Nut,
Double Acting, Spherical Saddle (Type - Oil Return)
Capacity 50 – 1000 ton | Stroke 150 – 300 mm | Max. Working Pressure 700 bar
Features / Application
- Threaded ram with safety lock nut for mechanical load holding
- Sustained load holding with lock nut in vertical & horizontal direction
- Double acting/oil return design for speedy return
- Heat teated alloy steel body
- Safety Relief Valve in return port prevents damage in case of accidental over pressurization due to blockage in return line
- Suited for heavy industries & construction
- Spherical saddle reduces damage to jack against off-center load
DT01S Series SP Shree Panchattatva Hydraulics D Double Acting Oil Return T01 Threaded Ram S Spherical Saddle 50 Capacity (ton) 150 Stroke (mm)
• Higher capacity and customized solutions on request.
• Specifications are subject to change due to continual improvement.
• Capacity and Stroke specified are maximum safe limits. Use at 80% of rating as safe practice.
