SP - LP01LH

Pancake Jacks - Plain Ram,
Single Acting (Type - Load Return)

Capacity 10 – 300 ton | Stroke 10 mm | Max. Working Pressure 700 bar

Pancake Jacks

Caution

Pancake Jacks
NO RAM STOPPER, Don’t overstroke,

Stop lifting once “Red band” on ram appears

Jack being compact, provide leveled & solid support for entire base area & top

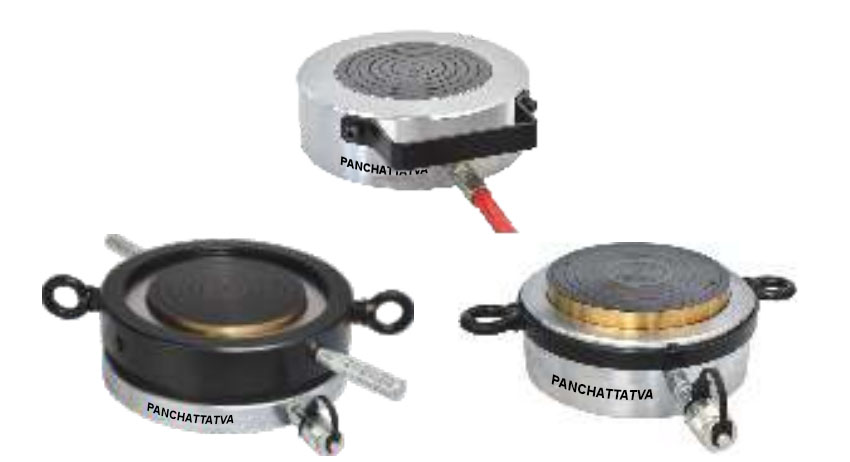

Pancake Jacks

Customised

Features / Application

  • Used in very Compact areas/low clearance areas
  • Heat teated alloy steel body
  • Grooved Ram end require no saddle
  • These Cylinders are suited for aligning & lowering of heavy machines, site maintenance & for precision lifting.

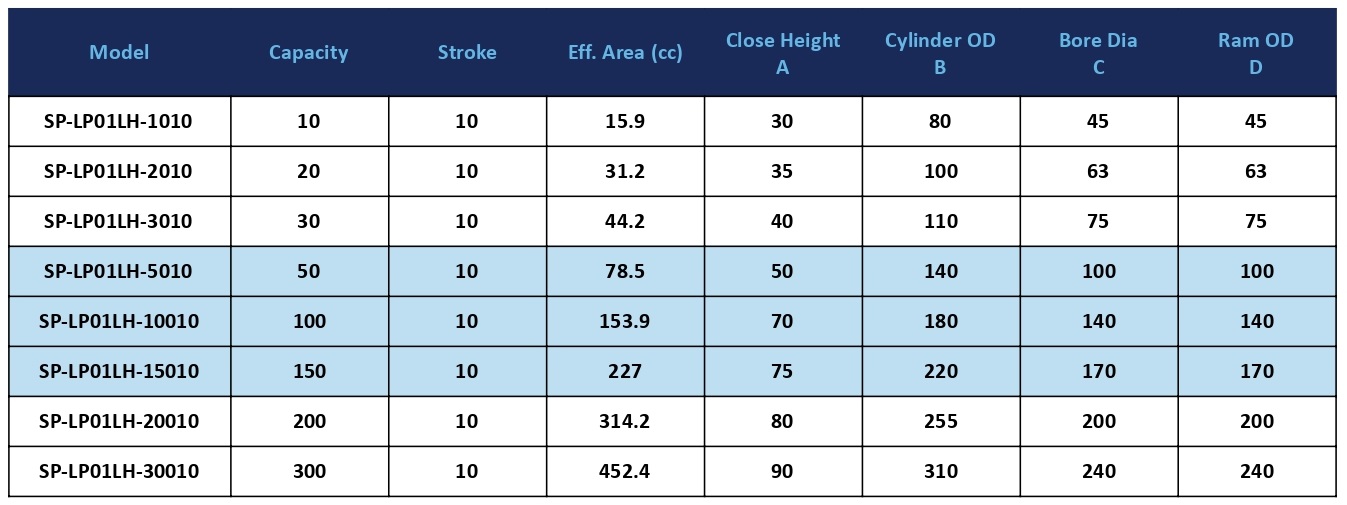

LP01LH Series          SP  Shree Panchattatva Hydraulics  L  Single acting Load Return  P01 Plain Ram   LH Very Low Height 10 Capacity (ton)  10  Stroke (mm)

• Higher capacity and customized solutions on request.
• Specifications are subject to change due to continual improvement.
• Capacity and Stroke specified are maximum safe limits. Use at 80% of rating as safe practice.
