SP - DP01

Multipurpose Jacks - Plain Ram,
Double Acting (Type - Oil Return)

Capacity 10 – 400 ton | Stroke 150 mm | Max. Working Pressure 700 bar

CUSTOMISED

Features / Application

  • Multipurpose jacks
  • Double acting/oil return design for speedy return
  • Ram Wiper to avoid cylinder contamination
  • These cylinders are suitable for applications like hydraulic presses, construction, pile load testing
  • Heat teated alloy steel body
  • Safety Relief Valve in return port prevents damage in case of accidental over pressurization due to blockage in return line
DP01 Series    SP Shree Panchattatva Hydraulics D Double Acting Oil Return P01 Plain Ram 10 Capacity (ton) 150 Stroke (mm)

• Higher capacity and customized solutions on request.
• Specifications are subject to change due to continual improvement.
• Capacity and Stroke specified are maximum safe limits. Use at 80% of rating as safe practice.

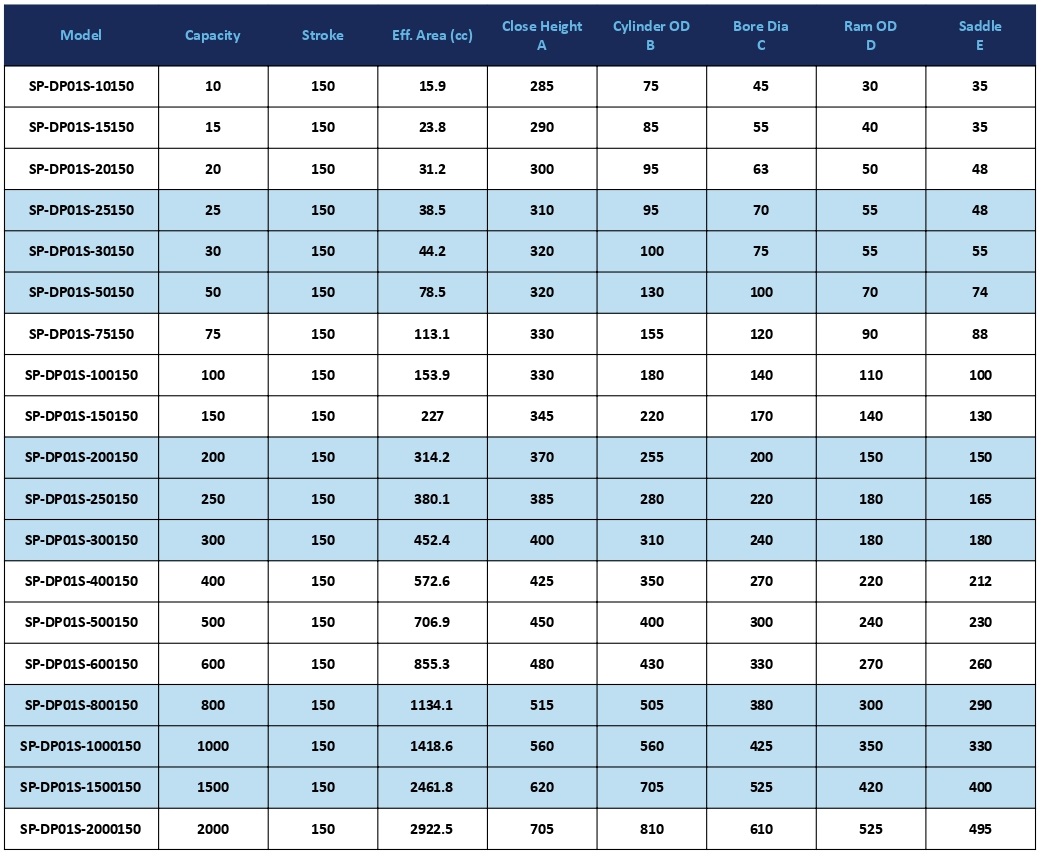

SP - DP01S

Multipurpose Jacks - Plain Ram,
Double Acting, Spherical Saddle (Type - Oil Return)

Capacity 10 – 2000 ton | Stroke 150 mm | Max. Working Pressure 700 bar

Customised

Features / Application

  • Multipurpose jacks
  • Double acting/oil return design for speedy return
  • Ram Wiper to avoid cylinder contamination
  • These cylinders are suitable for applications like hydraulic presses, construction, pile load testing
  • Heat teated alloy steel body
  • Spherical saddle reduces damage to jack against off-center load
  • Safety Relief Valve in return port prevents damage in case of accidental over pressurization due to blockage in return line
DP01S Series    SP Shree Panchattatva Hydraulics D Double Acting Oil Return P01 Plain Ram S Spherical Saddle 10 Capacity (ton) 150 Stroke (mm)

• Higher capacity and customized solutions on request.
• Specifications are subject to change due to continual improvement.
• Capacity and Stroke specified are maximum safe limits. Use at 80% of rating as safe practice.
