SP - ST01
General Purpose Jacks - Threaded Ram with Safety Lock Nut,
Single Acting (Type - Spring Return)
Capacity 10 – 400 ton | Stroke 150 mm | Max. Working Pressure 700 bar

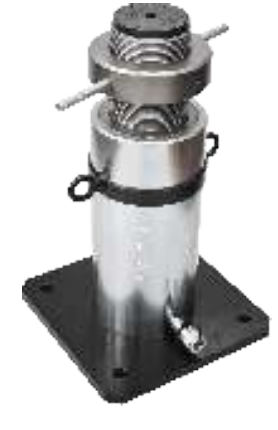

CUSTOMISED
Features / Application
- General/Multi purpose Jacks
- Threaded ram with safety lock nut for mechanical load holding
- Spring Return feature is upto 400 ton above that is load return
- These cylinders are ideally suited for supporting function inbuilding foundation & mining industries, handling of heavy industrial eqipments & for mobile transport system
- Heat teated alloy steel body

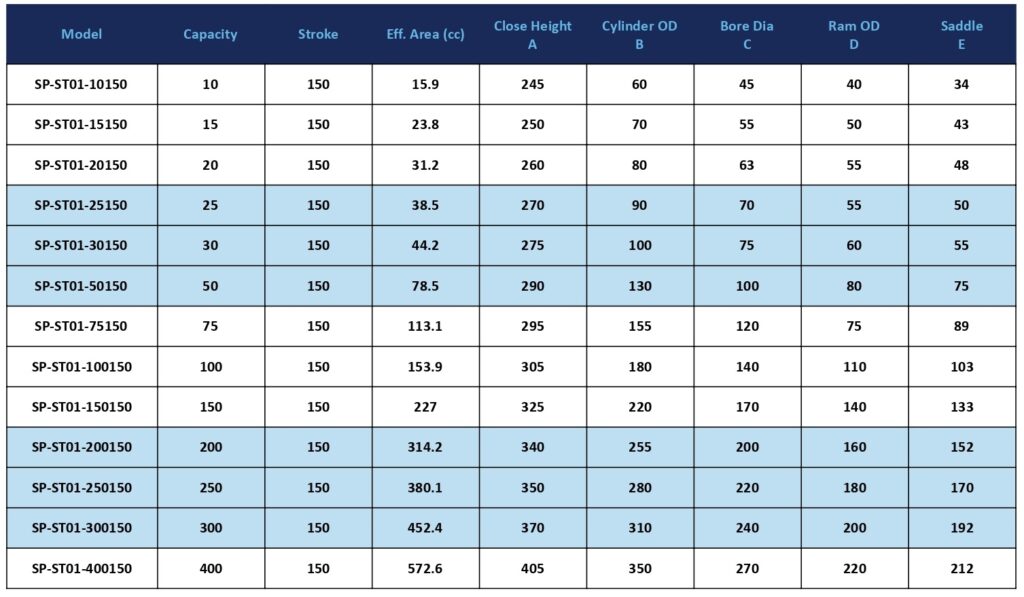

ST01 Series SP Shree Panchattatva Hydraulics S Single Acting Spring Return T01 Threaded Ram 10 Capacity (ton) 150 Stroke (mm)
• Higher capacity and customized solutions on request.
• Specifications are subject to change due to continual improvement.
• Capacity and Stroke specified are maximum safe limits. Use at 80% of rating as safe practice.

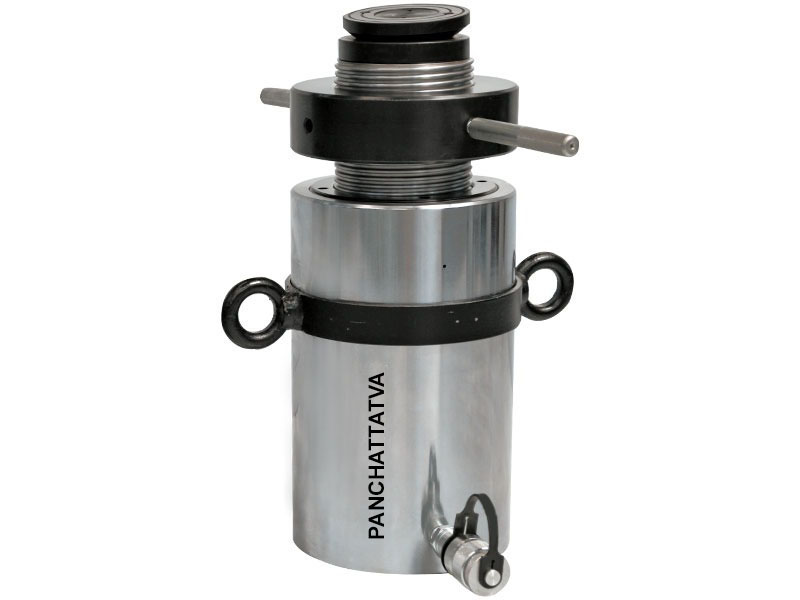

SP - ST01S
General Purpose Jacks - Threaded Ramwith Safety Lock Nut,
Single Acting, Spherical Saddle (Type - Spring Return)
Capacity 10 – 500 ton | Stroke 50 – 200 mm | Max. Working Pressure 700 bar

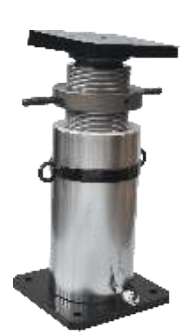

Customised
Features / Application
- General/Multi purpose Jacks
- Threaded ram with safety lock nut for mechanical load holding
- Spring Return feature is upto 400 ton above that is load return
- These cylinders are ideally suited for supporting function inbuilding foundation & mining industries, handling of heavy industrial eqipments & for mobile transport system
- Heat teated alloy steel body
- Spherical saddle reduces damage to jack against off-center load

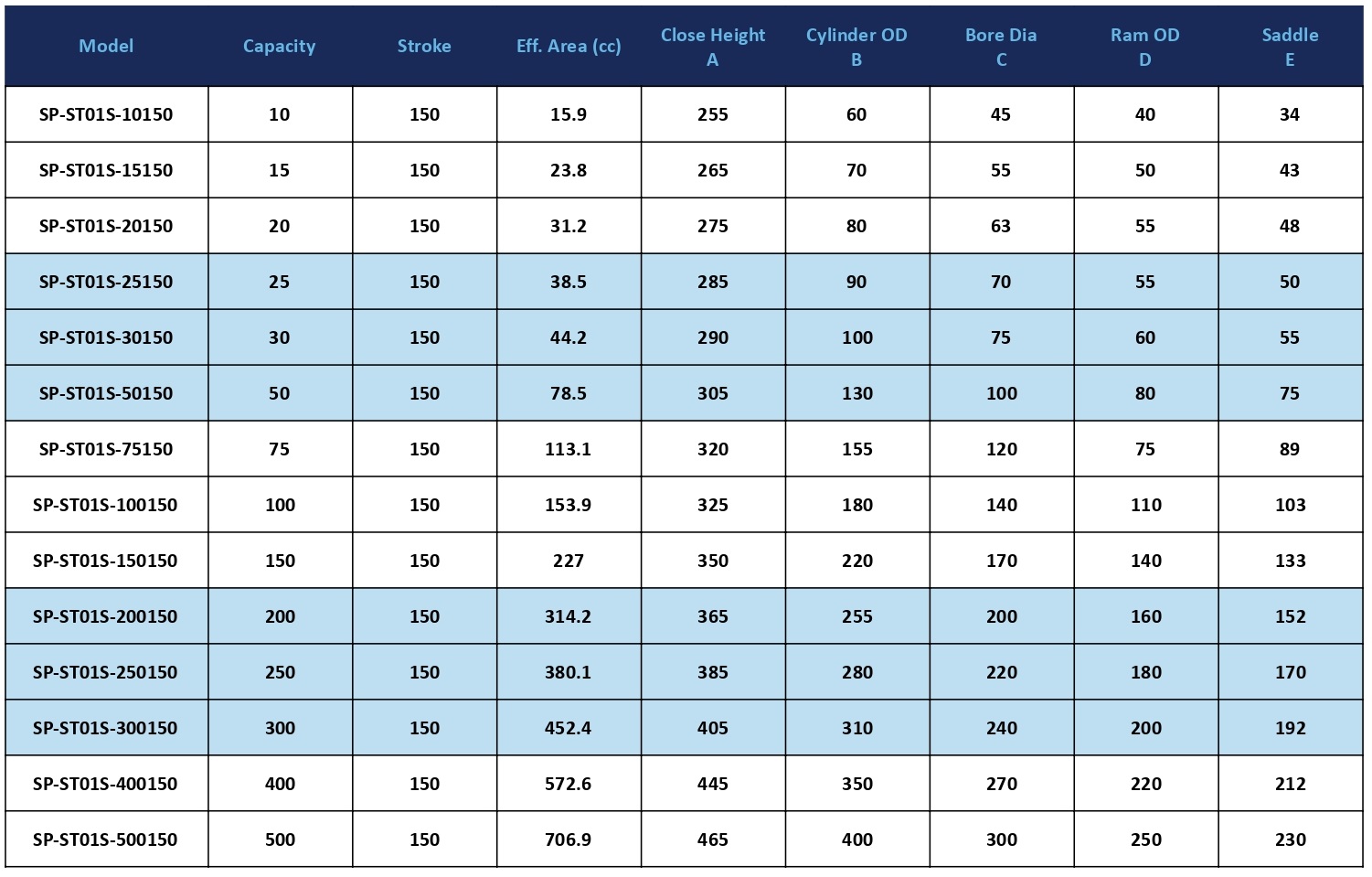

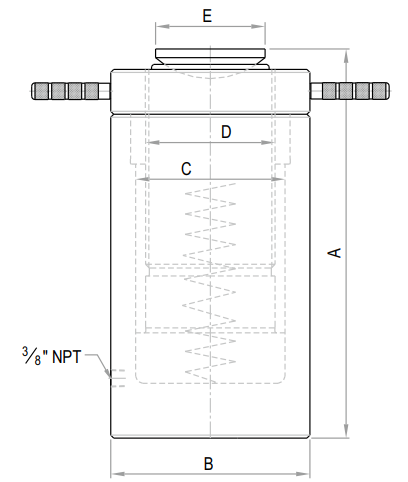

ST01S Series SP Shree Panchattatva Hydraulics S Single Acting Spring Return T01 Threaded Ram S Spherical Saddle 10 Capacity (ton) 150 Stroke (mm)
• Higher capacity and customized solutions on request.
• Specifications are subject to change due to continual improvement.
• Capacity and Stroke specified are maximum safe limits. Use at 80% of rating as safe practice.
