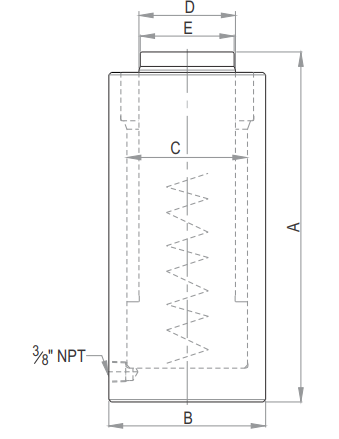

SP - SP03
General Purpose Jacks - Plain Ram ,
Single Acting (Type - Spring Return)
Capacity 5 – 400 ton | Stroke 50 – 200 mm | Max. Working Pressure 700 bar
Special Feature
Spring assisted ram retraction up to 500 ton
Features / Application
- General/Multi purpose Jacks
- Base Mounting Holes & Coller Mounting Threads
- Heat teated alloy steel body
- These cylinders can be used in a wide variety of situations such as fabrication, maintenance, construction, production etc
- Ram wiper to avoid cylinder contamination
SP03 Series SP Shree Panchattatva Hydraulics S Single acting spring Return P03 Plain Ram Type 3 5 Capacity (ton) 50 Stroke (mm)
• Higher capacity and customized solutions on request.
• Specifications are subject to change due to continual improvement.
• Capacity and Stroke specified are maximum safe limits. Use at 80% of rating as safe practice.

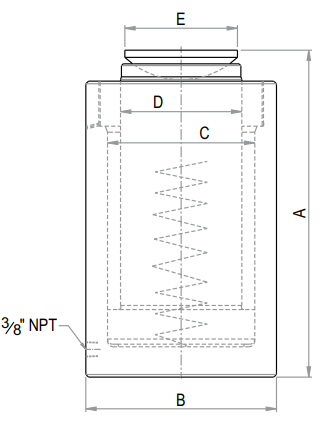

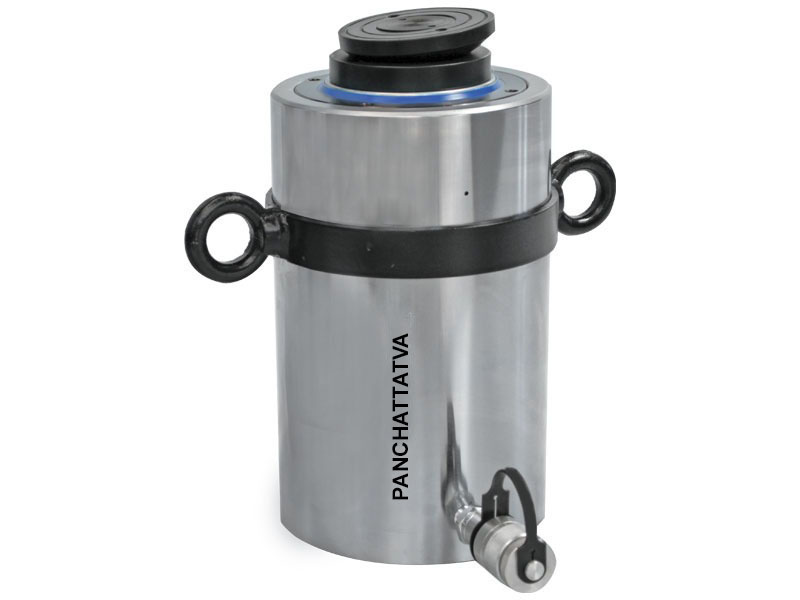

SP - SP03S
General Purpose Jacks - Plain Ram ,
Single Acting, Spherical Saddle (Type - Spring Return)
Capacity 10 – 500 ton | Stroke 50 – 200 mm | Max. Working Pressure 700 bar
Special Feature
Spring assisted ram retraction up to 500 ton
Features / Application
- General/Multi purpose Jacks
- Base Mounting Holes & Coller Mounting Threads
- Heat teated alloy steel body
- These cylinders can be used in a wide variety of situations such as fabrication, maintenance, construction, production etc
- Ram wiper to avoid cylinder contamination
- Spherical saddle reduces damage to jack against off-center load

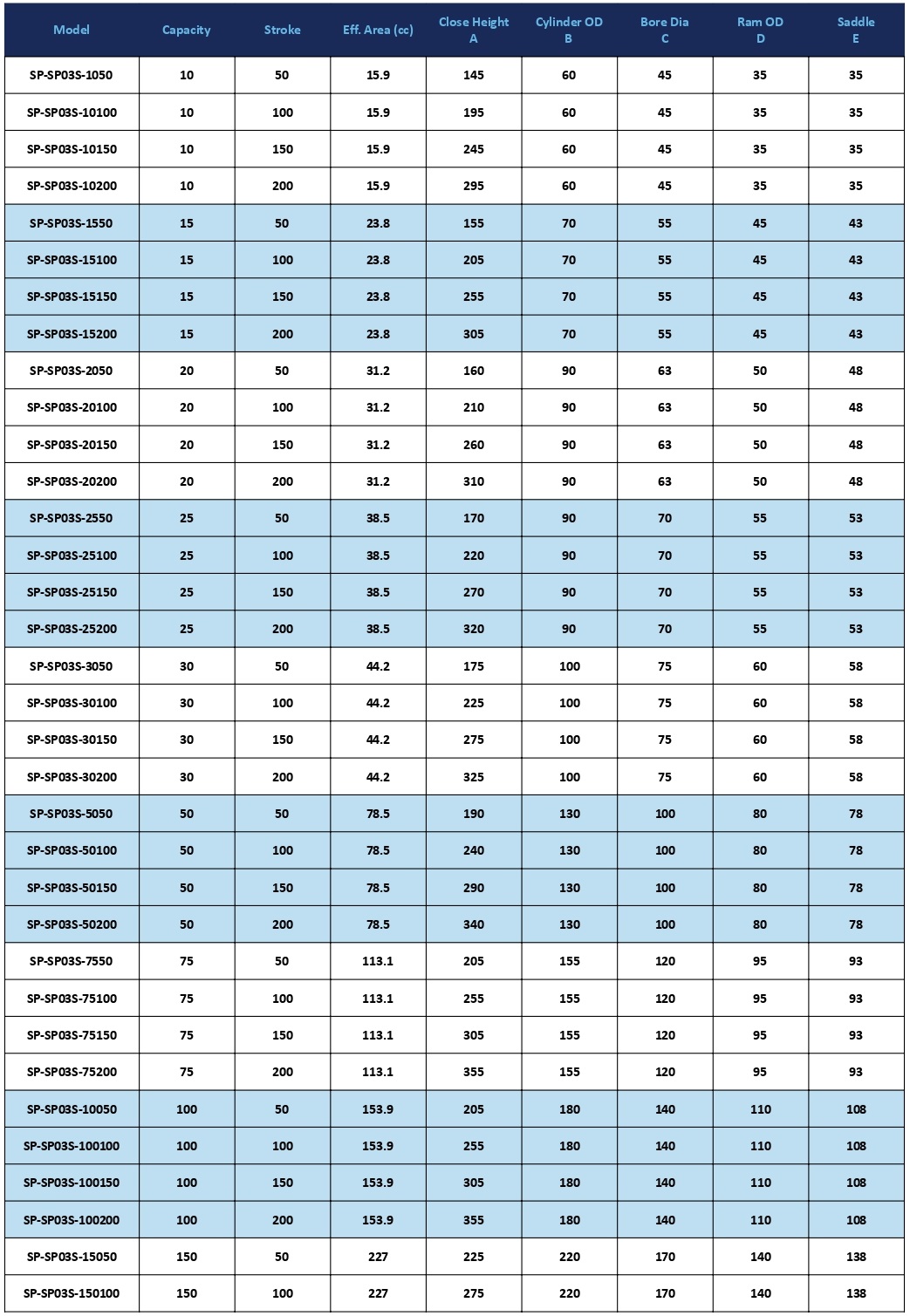

SP03S Series SP Shree Panchattatva Hydraulics S Single acting spring Return P03 Plain Ram Type 3 S Spherical Saddle 10 Capacity (ton) 50 Stroke (mm)
• Higher capacity and customized solutions on request.
• Specifications are subject to change due to continual improvement.
• Capacity and Stroke specified are maximum safe limits. Use at 80% of rating as safe practice.
