SP - ASP01

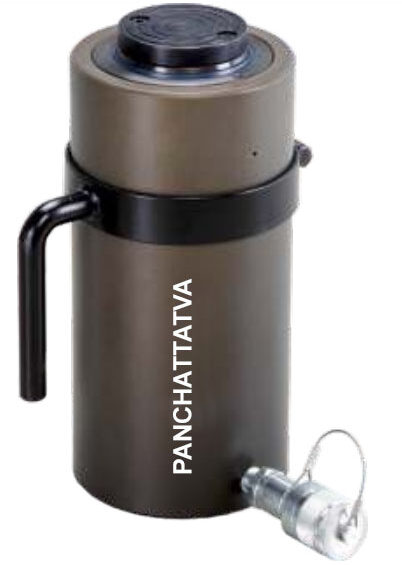

Aluminium General Purpose Jacks - Plain Ram,
Single Acting (Type - Spring Return)
Capacity 30 – 200 ton | Stroke 100 – 150 mm | Max. Working Pressure 700 bar
Caution
Aluminium jacks have lower fatigue life due to material properties & should NOT be used in high cycle application.
Features / Application
- These jacks are 50% lighter than alloy steel jacks
- General/Multi purpose Jacks
- Ram wiper to avoid cylinder contamination
- All Sub assemblies anodizes

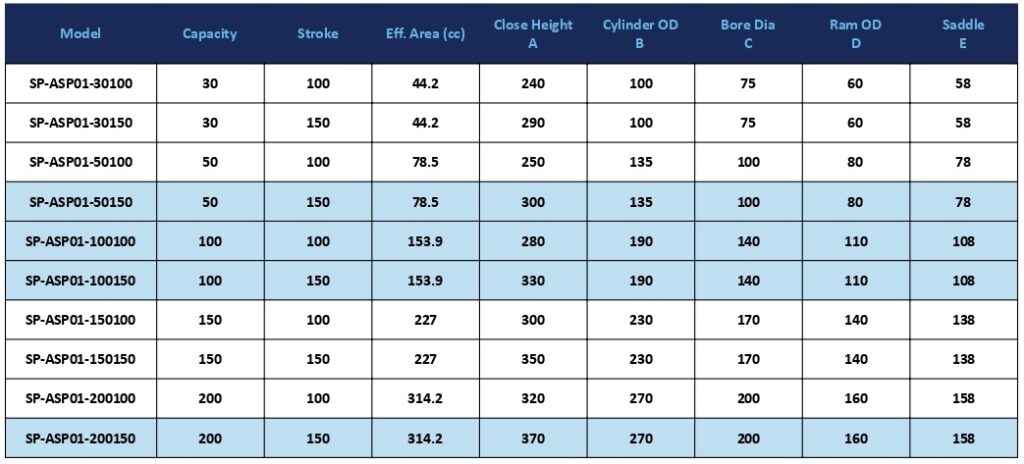

ASP01 Series SP Shree Panchattatva Hydraulics A Aluminum S Single Acting Spring Return P01 Plain Ram 30 Capacity (ton) 100 Stroke (mm)
• Higher capacity and customized solutions on request.
• Specifications are subject to change due to continual improvement.
• Capacity and Stroke specified are maximum safe limits. Use at 80% of rating as safe practice.
